MIR TVR DSNG upgrade to UHD 12G

TVC have upgraded DSNG to UHD 12G for customer MIR in Belarus.

TVC won the tender in 2018 for upgrading of a DSNG for customer MIR in Belarus. TVC team have carried out the following work was undertaken for the technical upgrade of the DSNG:

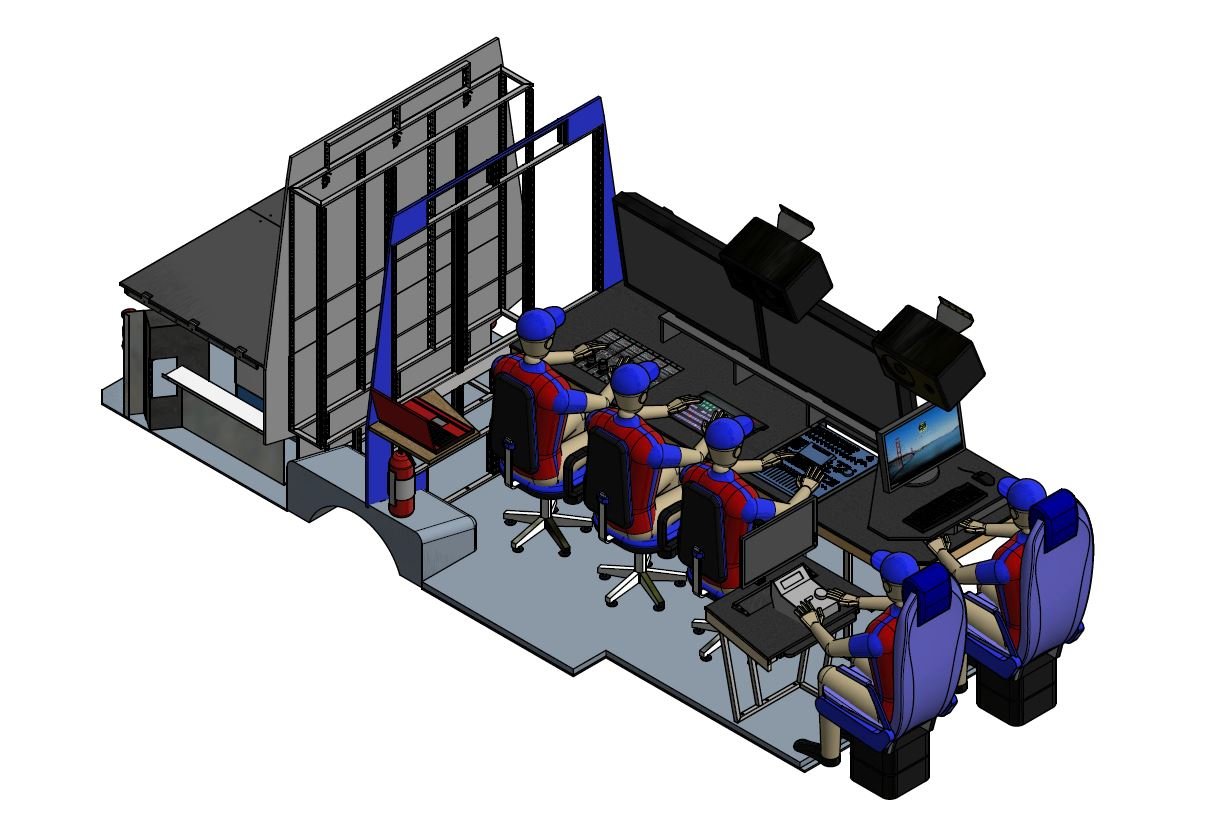

  • development of the project for work in the UHD 12G SDI format up to 6 cameras;
  • dismantlement of old equipment;
  • delivery and installation of the new UHD equipment;
  • the functional design, technical specifications, construction and unit test are complete;
  • staff training.

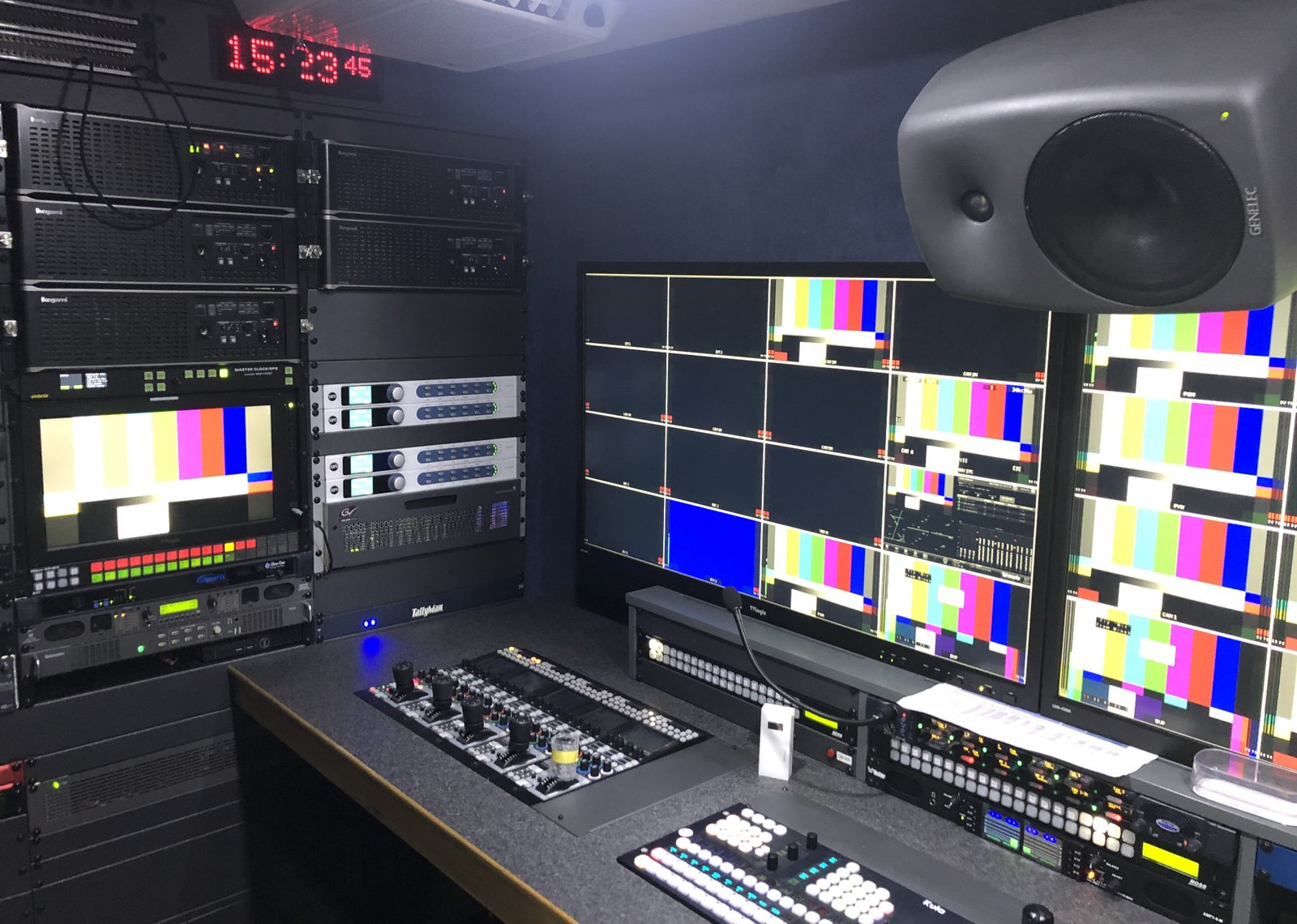

Currently DSNG is in the following configuration:



  • 5x IKEGAMI UHK-430 "Unicam XE" series 4K-native 2/3-inch CMOS sensors which provide full 3840 x 2160 UHD resolution. 5x IKEGAMI CCU-430 12G camera control units (CCU). Camera control is carried out using IKEGAMI OCP-300 panels;
  • the cameras are equipped with FUJINON UA22X8BERD-S8 and UA13X4,5BERD-S9 4K broadcast zoom lens with extenders;
  • 5x SACHTLER tripods;
  • ROSS VIDEO Ultrix 12G Router with 32x32 I/O, integrated MultiViewer with the option of two independent outputs and switching signals up to 12 Gbit/s;
  • 1 M/E package UHD with 3 keyers, the GRASS VALLEY 12G-SDI Kula switcher. It is equipped with 10 12G-SDI inputs and 3 12G-SDI outputs;
  • YAMAHA 01V96I Digital Mixing Console. Added MY16AE 16 Channel AES/EBU Interface Card;
  • transit and monitoring of the Dolby E® digital audio stream carried out using the WOHLER AMP1-E8-MDA;
  • Measuring Video and Audio instrument TEKTRONIX MPX PRISM 12G
  • 4x Grass Valley Kudos Pro UHD 1200 video & audio processing;
  • 2x TVLOGIC LUM-430M and 1x LUM-171G monitoring;
  • multi-Format Multi-Channel Record/Play Server AVID Fast Serve/Live Edit HD/UHD, 8 channels in HD format or 4 channels in UHD format recording/playback channels;
  • 2x ERICSSON AVP3000 VOYAGER 4K DSNG Encoders;
  • 2x ERICSSON RX8200 Advanced Modular Receivers and 2x MFCP 1.x 4K decoders;
  • Intercom CLEAR COM ECLIPSE HX-PICO, 36-port.
